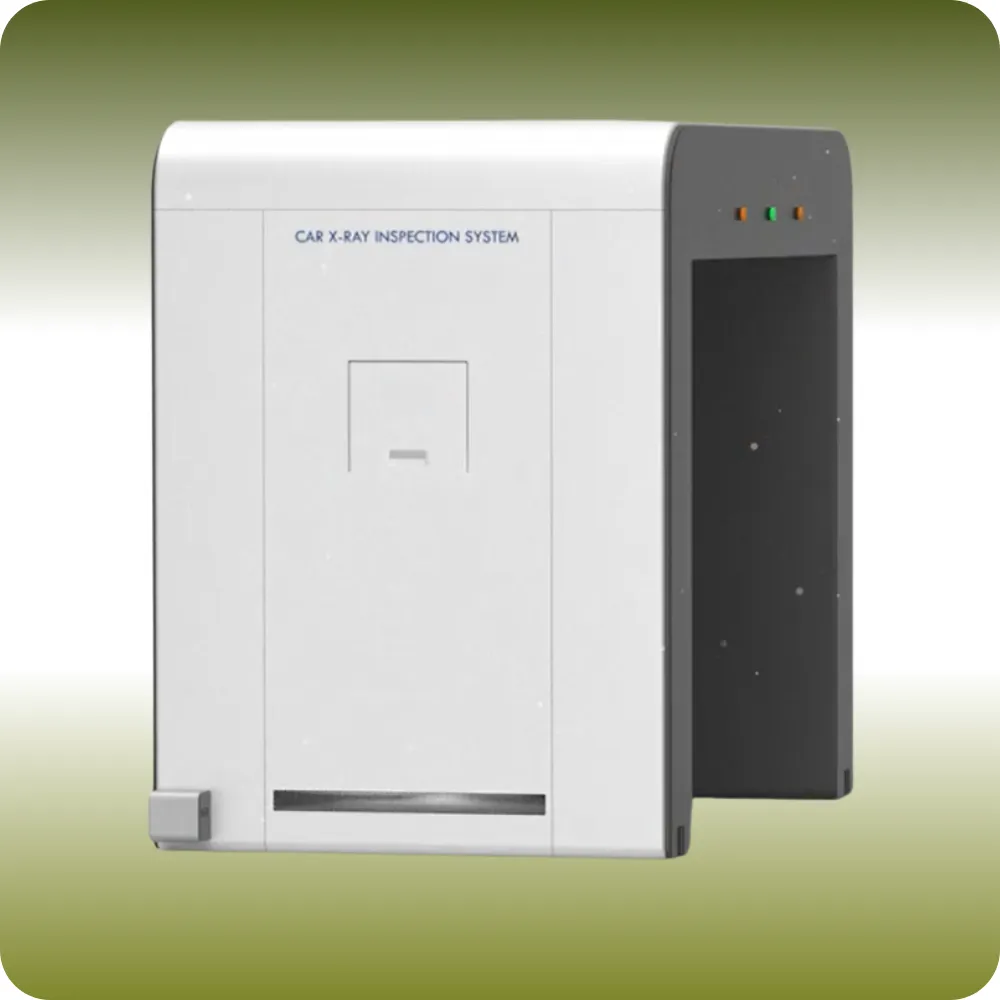

Cargo and Vehicle Inspection System TS-C260220

Physical Specifications:

• System Dimensions: 3000 mm (L) × 3000 mm (W) × 2600 mm (H)

• Installation Area (Minimum): 12 meters (L) × 4 meters (W) × 2.6 meters (H)

General Specifications:

• Inspection Method: Drive-through (vehicle passes under scanning portal)
• Maximum Vehicle Width: 2.6 meters
• Maximum Vehicle Height: 2.2 meters
• Scanning Speed: 5 – 10 km/h
• Throughput Capacity: Up to 150 vehicles per hour
• Wire Resolution: Detects copper wire as thin as 1.2 mm
• Steel Penetration Capability: Up to 50 mm
• Radiation Dose to Passenger: <0.2 µSv per scan
• Radiation Dose to Environment: <0.5 µSv at 5 meters

• Compliant Standards: ANSI N43.17 and IAEA Safety Standards

X-ray Generator (Dual-Energy):

• Energy Output: 250kV
• Beam Direction: Vertical, fan-shaped X-ray beam
• Cooling System: Oil & air-cooled

• Dose Type: Low-dose, safe for occupied vehicles

 Operator Workstation & Software:

• Display Monitor: High-definition 24” color LCD monitor

• Software Features:

  • Real-time vehicle imaging

  • Image zoom, pan, brightness & contrast adjustment

  • Density threshold alarms (high-density objects flagged)

  • Image saving and retrieval

  • Zoom up to 8x with adjustable filters

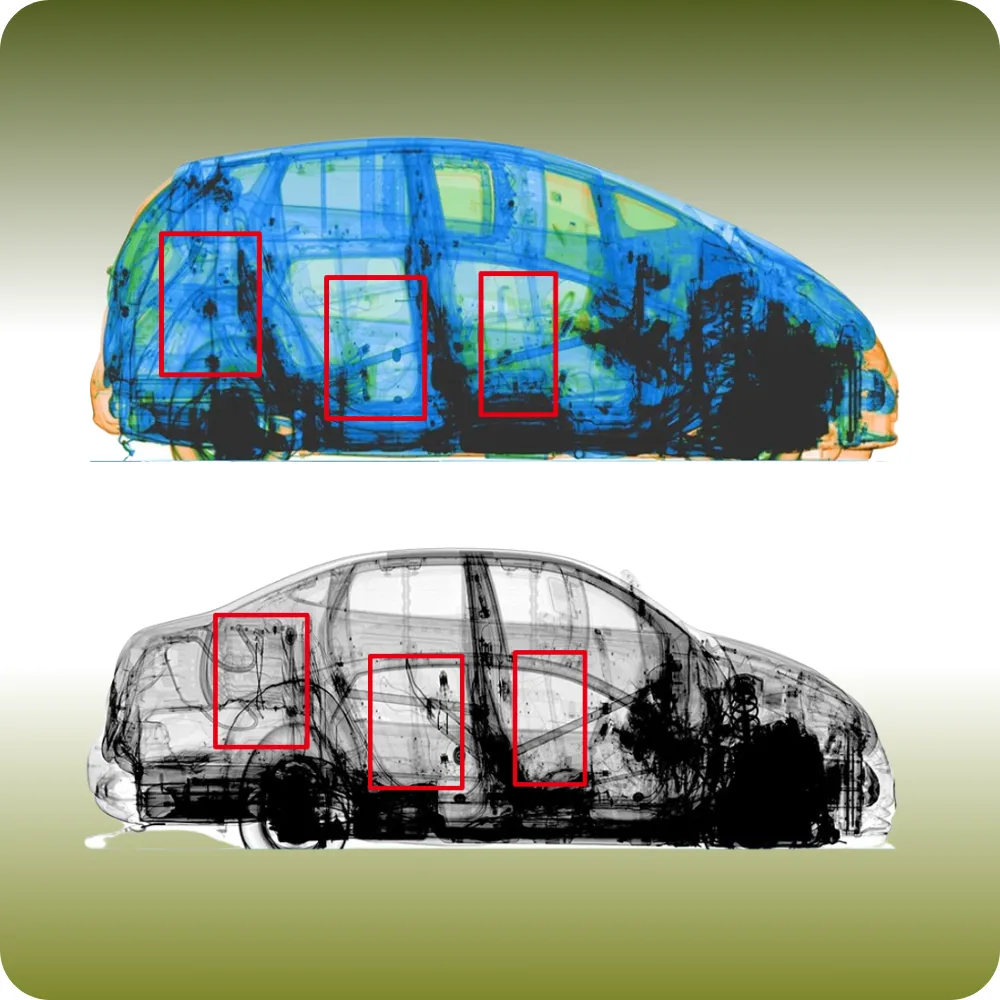

  • Dual-view imaging: top and side

  • Color and black & white modes

  • Secure login access

Environmental Requirements:

• Operating Temperature: -15°C to +55°C
• Humidity: 5% to 95% (non-condensing)
• Storage Temperature: -40°C to +70°C

• Power Supply: AC 220V ±10%, 50Hz ±3Hz (Custom options available)
